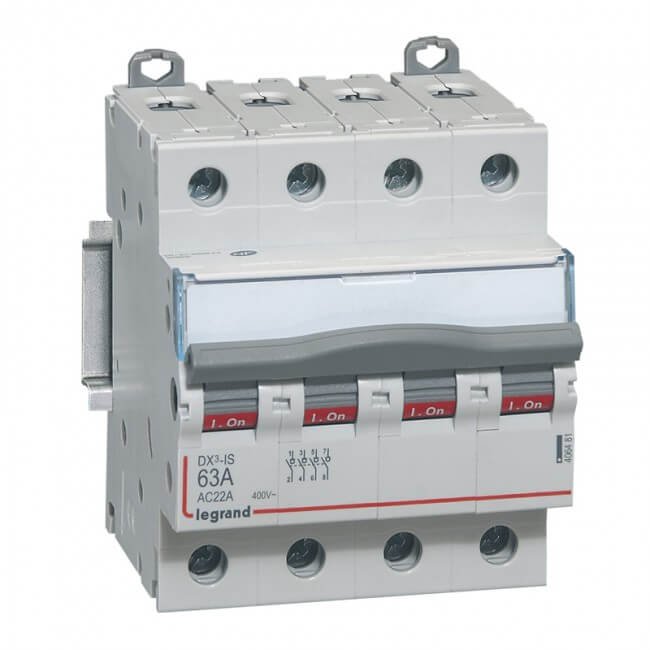

Description
REF. 406481
The product’s benefits
Installation
- Fitted with DIN rail clamps, on top side and on bottom side to facilitate the installation on the DIN rail.
Usage
- Fitted with a label holder allowing a clear, visible and convenient identification of the circuit. ON and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the contacts.
Recommendations / Restrictions
- This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.
NB: Rotate your screen on mobile for full table.
Technical Characteristics
| Version as main switch | Yes | Device construction | Built-in device fixed built-in technique |
| Version as maintenance-/service switch | No | Suitable for floor mounting | No |
| Version as safety switch | Yes | Suitable for front mounting 4-hole | No |
| Version as emergency stop installation | No | Suitable for front mounting centre | No |
| Max. rated operation voltage Ue AC | 400 V | Suitable for distribution board installation | Yes |
| Rated permanent current Iu | 63 A | Suitable for intermediate mounting | No |
| Conditioned rated short-circuit current Iq | 4500 kA | Type of control element | Toggle |
| Number of poles | 4 | Interlockable | Yes |
| Motor drive optional | No | Type of electrical connection of main circuit | Screw connection |
| Motor drive integrated | No | Degree of protection (IP), front side | IP20 |
