- Practibox S by Legrand have an optimised wiring space thanks to comfortable cabling spaces on all sides, a 150mm between DIN rails and a removable frame allowing wiring in the workshop. A dedicated joining kit, also available as an accessory, allows an easy assembly for flush-mounting cabinets. Also, a cut-out on the back of the packaging can be used to protect the flush-mounting box during installation.
Usage
- Practibox S cabinets have an attractive and modern appearance designed for the residential sector, both houses and flats, and for small office buildings. The cabinets can be delivered with a white door which blends harmoniously into any interiors and gives an aesthetic touch in your home or commercial shop. The smoked door is also available in order to easily verify if your installation is operating correctly.
Advantages
- Thanks to an extensive offer scope from 4M to 72M, Practibox S cabinets cover a large range of needs on your work sites. They are adapted to any configuration regardless of the type of installation, flush-mounted or surface-mounted, in residential or small office buildings.
NB: Rotate your screen on mobile for full table.

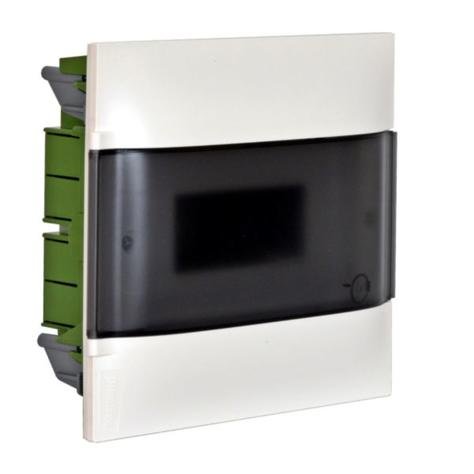

Option 1: 1 row of 12 (12 modules)
REF. 135171
| Mounting method | Flush-mounted | DIN-rail | Yes |
| Number of rows | 1 | With mounting plate | No |
| Width in number of modular spacings | 12 | Extension possible | Yes |
| Type of covering | Door | EMC-version | No |
| Cover model | With notch | Colour | White |
| Type of door | Single | RAL-number | 9003 |
| Transparent cover/door | Yes | Degree of protection (IP) | IP40 |
| Signal passing door | Yes | Height | 235 mm |
| With lock | Yes | Width | 328 mm |
| Type of closure | Cylinder | Depth | 102 mm |
| Housing material | Plastic | Enclosure capacity (Nb of modules) | 12 |
| Built-in depth | 72 mm | Degree of impact strength (IK) | IK07 |
| Built-in height | 231 mm | Operating / setting temperature | -10-40 °C |
| Built-in width | 324 mm | Storage temperature | -20-70 °C |
| Inner depth | 72 mm | Halogen free | No |
| Earthing terminal block | Yes | Fitted with rainproof plate protection | No |
| Neutral terminal block | Yes |
Option 2: 2 rows of 12 (24 modules)
REF. 135072
Technical characteristics
| Mounting method | Flush-mounted | EMC-version | No |
| Number of rows | 3 | Colour | White |
| Width in number of modular spacings | 12 | RAL-number | 9003 |
| Type of covering | Cover | Degree of protection (IP) | IP40 |
| Cover model | With notch | Height | 535 mm |
| Transparent cover/door | Yes | Width | 328 mm |
| With lock | No | Depth | 103 mm |
| Housing material | Plastic | Enclosure capacity (Nb of modules) | 36 |
| Built-in depth | 72 mm | Degree of impact strength (IK) | IK07 |
| Inner depth | 72 mm | Operating / setting temperature | -10-40 °C |
| DIN-rail | Yes | Storage temperature | -20-70 °C |
| With mounting plate | No | Halogen free | No |
| Extension possible | Yes | Fitted with rainproof plate protection | No |

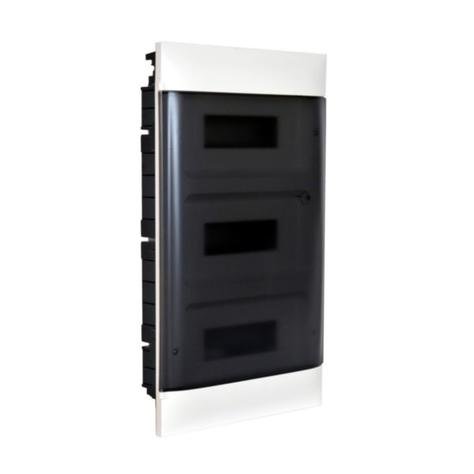

Option 3: 3 rows of 12 (36 modules)
REF. 135073
Technical characteristics
| Mounting method | Flush-mounted | EMC-version | No |
| Number of rows | 3 | Colour | White |
| Width in number of modular spacings | 12 | RAL-number | 9003 |
| Type of covering | Cover | Degree of protection (IP) | IP40 |
| Cover model | With notch | Height | 535 mm |
| Transparent cover/door | Yes | Width | 328 mm |
| With lock | No | Depth | 103 mm |
| Housing material | Plastic | Enclosure capacity (Nb of modules) | 36 |
| Built-in depth | 72 mm | Degree of impact strength (IK) | IK07 |
| Inner depth | 72 mm | Operating / setting temperature | -10-40 °C |
| DIN-rail | Yes | Storage temperature | -20-70 °C |
| With mounting plate | No | Halogen free | No |
| Extension possible | Yes | Fitted with rainproof plate protection | No |

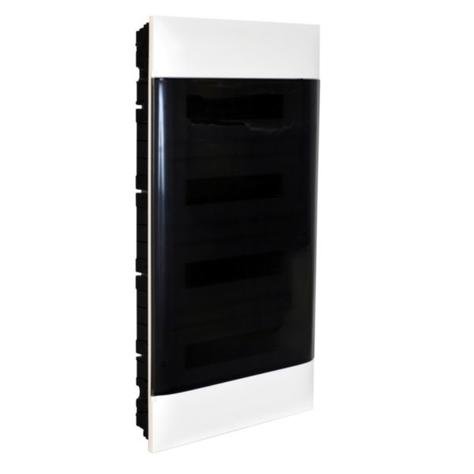

Option 4: 4 rows of 12 (48 modules)
REF. 135174
| Mounting method | Flush-mounted | DIN-rail | Yes |
| Number of rows | 4 | With mounting plate | No |
| Width in number of modular spacings | 12 | Extension possible | Yes |
| Type of covering | Door | EMC-version | No |
| Cover model | With notch | Colour | White |
| Type of door | Single | RAL-number | 9003 |
| Transparent cover/door | Yes | Degree of protection (IP) | IP40 |
| Signal passing door | Yes | Height | 765 mm |
| With lock | Yes | Width | 328 mm |
| Type of closure | Cylinder | Depth | 103 mm |
| Housing material | Plastic | Enclosure capacity (Nb of modules) | 48 |
| Built-in depth | 72 mm | Degree of impact strength (IK) | IK07 |
| Built-in height | 761 mm | Operating / setting temperature | -10-40 °C |
| Built-in width | 324 mm | Storage temperature | -20-70 °C |
| Inner depth | 72 mm | Halogen free | No |
| Earthing terminal block | Yes | Fitted with rainproof plate protection | No |
| Neutral terminal block | Yes |
