Description
NB: Rotate your screen on mobile for full table.

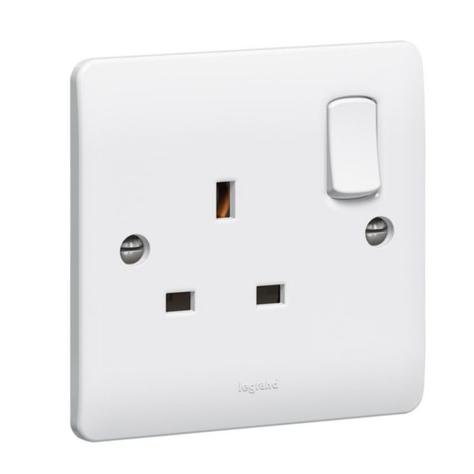

Option 1: 1 Gang
REF. 730066
Technical characteristics
| Model | British Standard | Halogen free | Yes |
| Protective contact | Round | Surface protection | Untreated |
| Number of active contacts (round) | 0 | Surface finishing | Glossy |
| Number of active contacts (flat) | 1 | Antimicrobial treatment | No |
| With complementary luminous signal | No | With loop through function | Yes |
| Number of ports USB-A | 0 | With on/off switch | Yes |
| Number of ports USB-C | 0 | Rotated central insert | No |
| Number of units | 1 | Nominal current | 13 A |
| Number of socket outlets switchable | 1 | Nominal voltage | 250 V |
| Number of phases | 1 | Frequency | 50-60 Hz |
| Imprint/indication | Other | Suitable for degree of protection (IP) | IP2X |
| Connection type | Screwed terminal | Degree of impact strength (IK) | IK01 |
| With hinged lid | No | Device width | 86 mm |
| With enhanced contact protection | Yes | Device height | 86 mm |
| Label space/information surface | No | Device depth | 30 mm |
| Colour | White | Compatible with Apple HomeKit | No |
| RAL-number (similar) | 9003 | Compatible with Amazon Alexa | No |
| Metallic colour | No | Compatible with Google Assistant | No |
| Transparent | No | IFTTT support available | No |
| Lockable | No | With Wi-Fi signal repeater | No |
| Eject-mechanism | No | With built-in Bluetooth speaker | No |
| Insulated mounting | No | For heavy conditions according to VDE | No |
| With function lighting | No | Built-in depth | 19.5 mm |
| With orientation lighting | No | Operating / setting temperature | -5-40 °C |
| Over voltage protection | No | Storage temperature | -5-40 °C |
| Fault current protection | No | Voltage type | AC |
| With miniature fuse | No | Power Delivery | No |
| Special power supply | No special power supply | Cable nature for connection | Flexible or rigid |
| Mounting method | Flush-mounted | Cable section | 4-4 mm² |
| Type of fastening | Mounting with screw | Cable support | Other |
| Material | Plastic | Cover | Full cover plate |
| Material quality | Thermoplastic | Connected object | No |

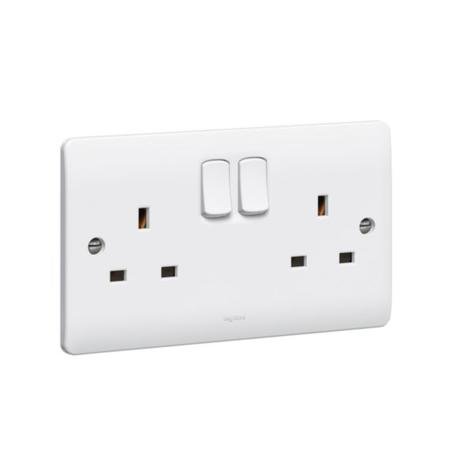

Option 2: 2 Gang
REF. 730076
Technical characteristics
| Model | British Standard | Halogen free | Yes |
| Protective contact | Round | Surface protection | Untreated |
| Number of active contacts (round) | 0 | Surface finishing | Glossy |
| Number of active contacts (flat) | 1 | Antimicrobial treatment | No |
| With complemantary luminous signal | No | With loop through function | Yes |
| Number of ports USB-A | 0 | With on/off switch | Yes |
| Number of ports USB-C | 0 | Rotated central insert | No |
| Number of units | 2 | Nominal current | 13 A |
| Number of socket outlets switchable | 2 | Nominal voltage | 250 V |
| Number of phases | 1 | Frequency | 50-60 Hz |
| Imprint/indication | Other | Suitable for degree of protection (IP) | IP2X |
| Connection type | Screwed terminal | Degree of impact strength (IK) | IK01 |
| With hinged lid | No | Device width | 146 mm |
| With enhanced contact protection | Yes | Device height | 86 mm |
| Label space/information surface | No | Device depth | 30 mm |
| Colour | White | Compatible with Apple HomeKit | No |
| RAL-number (similar) | 9003 | Compatible with Amazon Alexa | No |
| Metallic colour | No | Compatible with Google Assistant | No |
| Transparent | No | IFTTT support available | No |
| Lockable | No | With Wi-Fi signal repeater | No |
| Eject-mechanism | No | With built-in bluetooth speaker | No |
| Insulated mounting | No | For heavy conditions according to VDE | No |
| With function lighting | No | Built-in depth | 19.5 mm |
| With orientation lighting | No | Operating / setting temperature | -5-40 °C |
| Over voltage protection | No | Storage temperature | -5-40 °C |
| Fault current protection | No | Voltage type | AC |
| With miniature fuse | No | Power Delivery | No |
| Special power supply | No special power supply | Cable nature for connection | Flexible or rigid |
| Mounting method | Flush-mounted | Cable section | 4-4 mm² |
| Type of fastening | Mounting with screw | Cable support | Other |
| Material | Plastic | Cover | Full cover plate |
| Material quality | Thermoplastic | Connected object | No |
